类 别 | 规格参数 | 备注 |

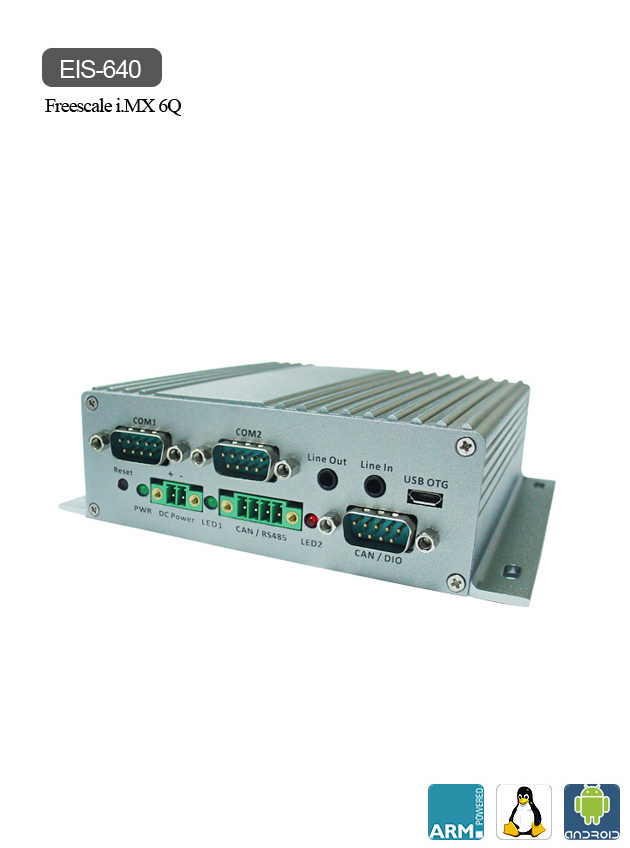

| Model Name | EIS-640 | |
| Processor | 1.0GHz Freescale i.MX 6Quad ARM Cortex-A9 |
|
| System Memory | 1/2GB DDR3 SDRAM | |
| Flash | 8/16GB iNAND Flash | |
| Graphics | Vivante GC2000 3D GPU & Vivante GC355
2D GPU | |
| Ethernet | Atheros AR8031 Gigabit Ethernet transceiver | |
| Audio | Freescale SGTL5000 low power stereo codec | |
| Video Decoder | HDMI , VGA(CH7101A HDMI to VGA
Converter,option) | |
| HDMI | Integrated HDMI 1.4 transmitter | |
| USB Host | SMSC USB 2514 USB 2.0 high speed 4-port
hub controllers
| |
| USB OTG | USB Device for Debug , USB HOST | |
| Micro SD | Support : Max 32GB | |
| Front I/O | 1 x Reset button
1 x Power LED
2 x Indicator LED
1 x DC Power input connector by 2-pole Phoenix connector
2 x COM D-sub 9-pin connector supports
4-wire Tx / Rx,CTS / RTS)
1 x RS485 & 1 x CAN( or 2 x RS485，Option) by 4-pole Phoenix connector
1 x DB9-pin (8-bit GPIO, Including SPI x 1 / IIC x 1 / GPIO x 1 / 3.3V x 1)
1 x Micro USB2.0 type B connector support OTG
2 x Φ3.5 phone jack connectors as HP-out,MIC-in | |
Back I/O
| 1 x Micro SD/SPI boot switch
1 x RJ-45 connector
2 x USB 2.0 connectors
1 x HDMI connector
1 x VGA connector (Option) | |
Bottom Opening Covers | Open window with removable door plate to access the micro SD flash drive | |
| Watch Dog Timer | The Watchdog Timer supports two comparison points during each counting period. Each of the comparison points is configurable to evoke an interrupt to the ARM core, and a second point evokes an external event on the WDOG line | |
| Power Supply | DC 6V~DC 30V input | |
Operating System
| Linux Kernel 3.0.35 / Android 4.X | |
Operating Temperature
| Extended temperature SKU: -40℃~ 105℃
| |
Option Modules
| Android System Support:
GPS/WIFI & BT/3G/4G Modem/LVDS/CMOS
Linux System Support:
GPS / WIFI /3G pppoe/ LVDS | |
| | |
| | | |
| | | |
|
| |
| | | |
| | | |
