类 别 | 规格参数 | 备注 |

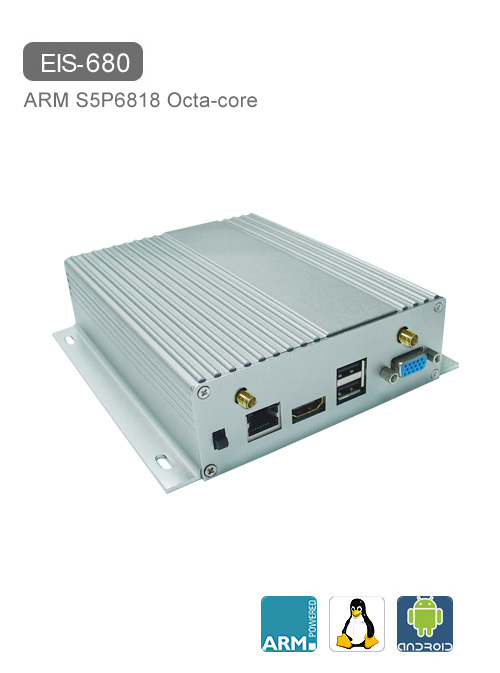

| Model Name | EIS-680 | |

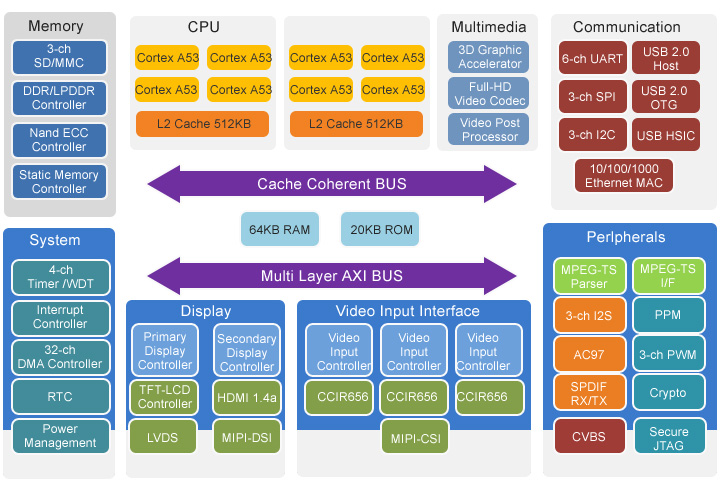

| Processor | ARM S5P6818 Octa-core 1.0~1.4GHz |
|
| System Memory | 1/2GB DDR3 | |
| Flash | 8/16GB iNAND Flash | |
| PMU | AXP228 ，支持动态调频、库仑计等功能 | |
| Ethernet | RTL8211E千兆网路 | |
| Audio | ALC5621，3.5标准的耳机接口，支持带MIC耳机 | |
| Video Decoder | HDMI、VGA（THS8136PHP，符合VESA标准，兼容所有设备） | |
| HDMI | A型，支持HDMI 1.4，支持3D输出，1080P高清分辨率 | |
| USB Host | 四路USB Host接口（USB 2514） | |
| USB OTG | 2.0接口，MicroUSB | |
| Micro SD | Support : Max 32GB | |

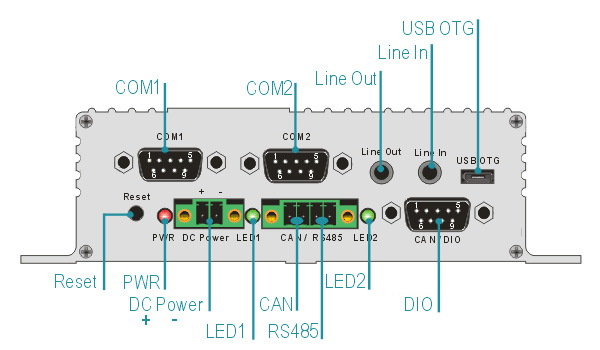

| Front I/O | 1 x Reset button
1 x Power LED
2 x Indicator LED
1 x DC Power input connector by 2-pole
Phoenix connector
2 x COM D-sub 9-pin connector supports
4-wire Tx / Rx,CTS / RTS)
1 x RS485 & 1 x CAN( or 2 x RS485，Option)
by 4-pole
Phoenix connector
1 x DB9-pin (8-bit GPIO, Including SPI x 1 /
IIC x 1 / GPIO x 1 / 3.3V x 1)
1 x Micro USB2.0 type B connector support
OTG
2 x Φ3.5 phone jack connectors as HP-out,
MIC-in | |

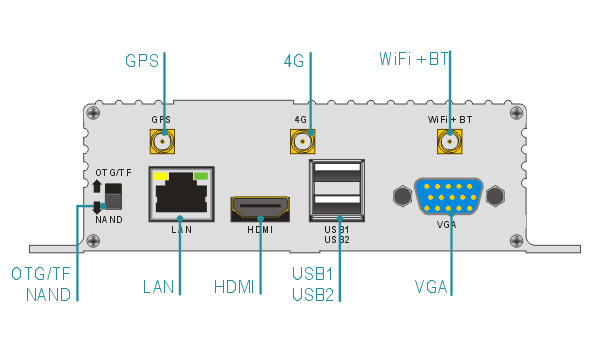

Back I/O
| 1 x Micro SD/SPI boot switch
1 x RJ-45 connector
2 x USB 2.0 connectors
1 x HDMI connector
1 x VGA connector (Option) | |
Bottom Opening Covers | Open window with removable door plate to
access the micro SD flash drive | |
| Watch Dog Timer | The Watchdog Timer supports two comparison
points during each counting period. Each of
the comparison points is configurable to evoke
an interrupt to the ARM core, and a second
point evokes an external event on the WDOG
line | |
| Power Supply | DC 6V~DC 30V input | |
Operating System
| Linux Kernel 3.4.39 / Android 4.4.2 / Android 5.X | |
Operating Temperature
| Extended temperature SKU: -40℃~ 105℃
| |
| USB WiFi | RTL8723BU模组 | |
| USB BT | RTL8723BU模组 | |
| SD | 1个TF卡接口 | |
| Camera | 1路独立的Camera接口 | |
串口
| 五路输出，其中GPS使用一路，Debug口使用一路 ，RS485使用两路，另一路外扩 | |
Option Modules
| Android System Support:
GPS / 3G /4G Modem / LVDS / CMOS
Linux System Support:
GPS / WIFI /3G pppoe/ LVDS | |
| | | |
